Mini relay for cs ssr 1no

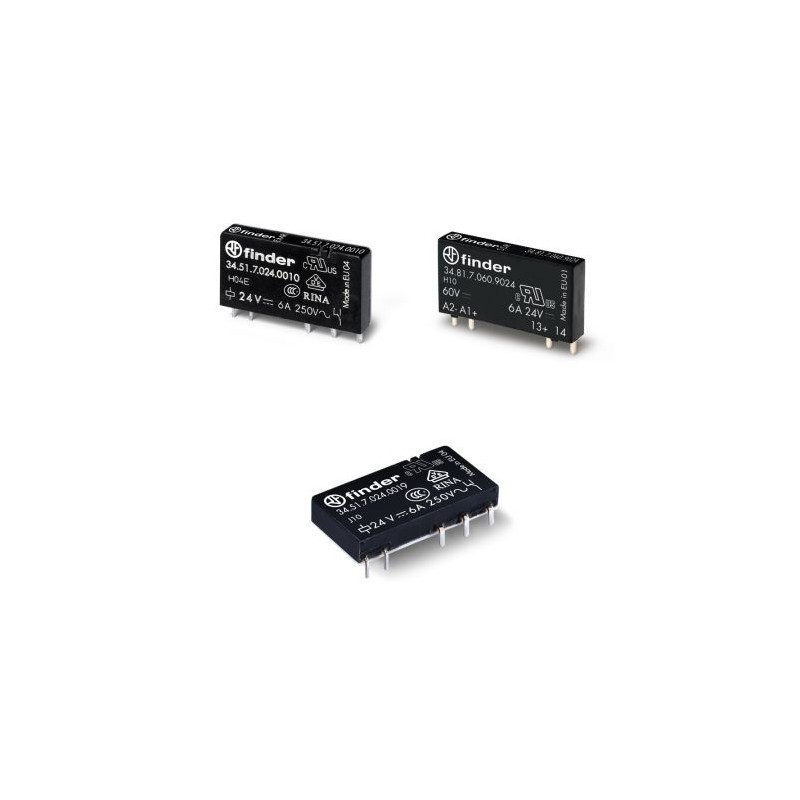

The Finder 34.81.7.005.8240 is an ultra-thin solid state relay (SSR) designed for printed circuit board (PCB) mounting. This specific model features a 1 NO (SPST-NO) contact configuration and offers the following features:

• Rated input voltage : 5V DC
• Operating input voltage range : 3.5...12 V DC
• Control current at 5V : 12mA
• Rated output voltage : 240 V AC
• Rated output current : 2A (at 50°C); 1.5A (at 70°C)
• Switching type : Zero crossing
• Isolation between input and output : 3000 V AC
• Dimensions (LxHxD) : 5.0 x 15.5 x 28 mm
• Environmental protection : Wash tight RT III

This relay is ideal for applications requiring compact PCB installation and silent, high-speed switching. The zero-cross switching feature helps reduce electromagnetic interference during operation.
