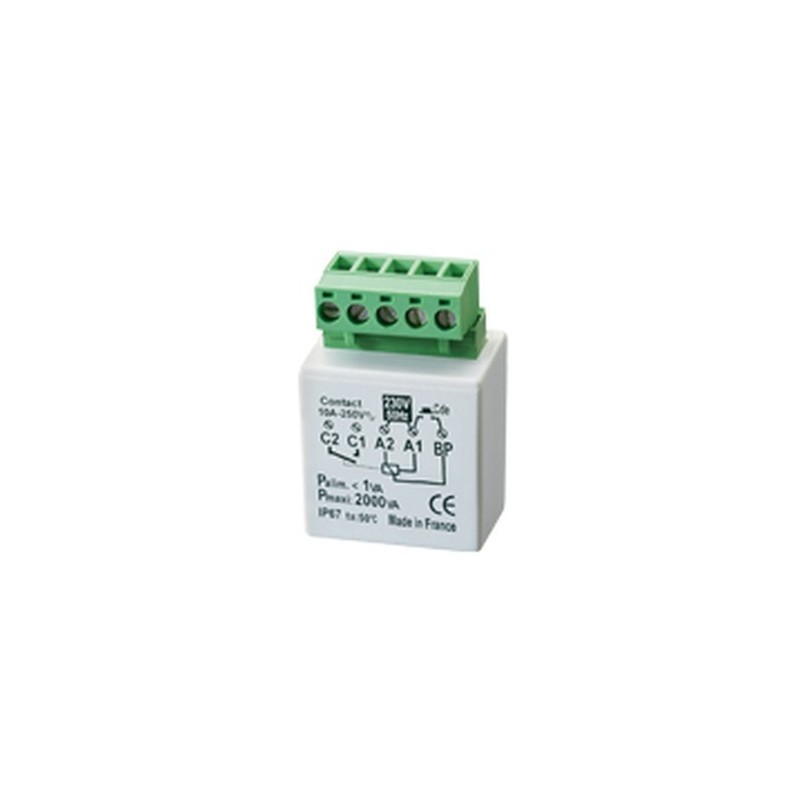

Yokis Urmet Step Step Relay Built-in with Timed Neutral 2000W MTR2000E
-
Security Policies -
Shipping Policies
ECONOMIC : The MTR2000 modules can be centralized using only a simple pilot wire and diodes: no additional accessories are required. Integrated timing function (unlimited, or configurable from 2 seconds to 4 hours)
COMFORTABLE : Silent, you will immediately forget it, even if installed behind the buttons.
UNIVERSAL : Works with the controls of any civil series. Compatible with all types of loads.
ADVANTAGES OF THE 2000W TIMED STEP-BY-STEP RELAY
You can set an automatic shutdown after a configurable time from 2 seconds to 4 hours
Installer-configurable shutdown warning option
Allows shutdown before the end of the timing
Silent, works without disturbing users
Easily centralized on non-interlocked double button via pilot wire
Tiny, it can be placed behind any button
Protected digital coil, in case of prolonged button operation
Compatible with existing wiring where the common of the buttons has already been connected to neutral or phase (3-wire or 4-wire mode)
Simplified wiring by eliminating the return connections of the buttons and bulbs to the electrical panel
Does not work with push buttons with indicator light. In this case, use the MTM2000, configuring it as a relay
Installer-configurable shutdown warning option
Allows shutdown before the end of the timing
Silent, works without disturbing users
Easily centralized on non-interlocked double button via pilot wire
Tiny, it can be placed behind any button
Protected digital coil, in case of prolonged button operation
Compatible with existing wiring where the common of the buttons has already been connected to neutral or phase (3-wire or 4-wire mode)
Simplified wiring by eliminating the return connections of the buttons and bulbs to the electrical panel
Does not work with push buttons with indicator light. In this case, use the MTM2000, configuring it as a relay
Technical features
Mains voltage
230V ~ (+10% - 15%) - 50Hz
Power
min. 5VA max. 500VA (300VA in waterproof boxes)
Maximum current
1.3A / 2.2A waterproof boxes: 1.3A /300VA other boxes: 2.2A/500VA
Room temperature
-20°C + 40°C
Relative humidity
0 to 99%
- The flush-mounted module, MTT500E, is 100% waterproof for outdoor installations.
- Inrush current limitation by filament preheating
- Integrated electronic protection in case of short circuit on the load, with automatic reset after the fault has been eliminated
- Electronic protection against overheating
- Possibility of driving at 12 or 48VAC or DC with the addition of the ADBT accessory
- Immunity to mains disturbances up to 1.5 kV
- Increases the life of bulbs and buttons
UTD5454050
2 Items
Specific References
- EAN13
- 3760054543508
- MPN
- 5454050
