Smart dongle huawei wlan fe - sdonglea-05

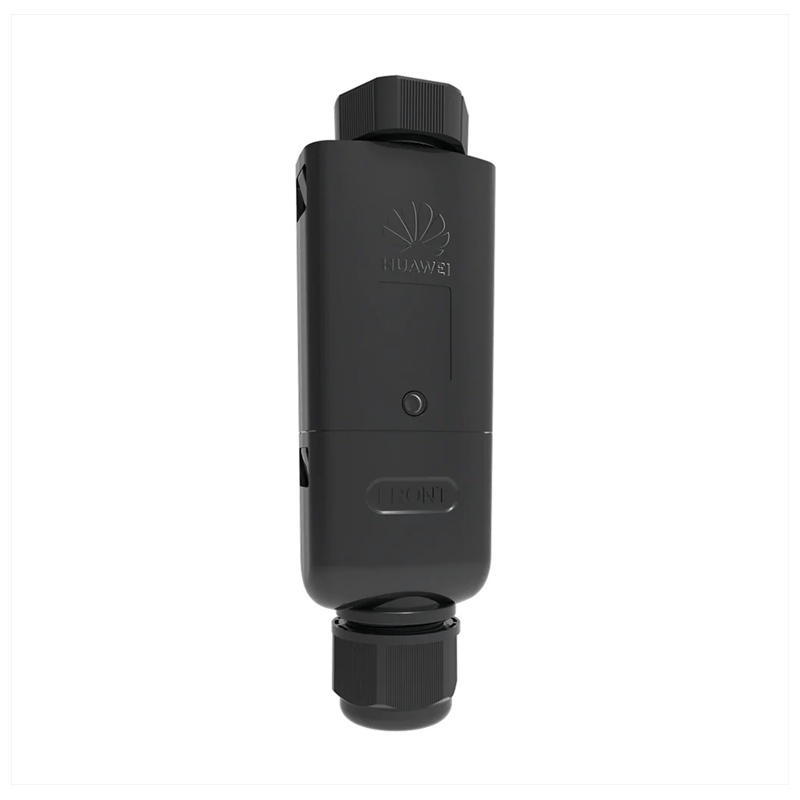

Huawei Smart Dongle WLAN-FE – S-DongleA-05

The Huawei Smart Dongle WLAN-FE (code: S-DongleA-05) is a plug-and-play communication device designed to enable Wi-Fi (WLAN) and Ethernet (FE) connectivity on Huawei PV inverters. With this dongle, you can monitor the operation of your solar system in real time via the Huawei FusionSolar platform, even remotely.

🔧 Main Features:

• Model : S-DongleA-05

• Function : Enables WLAN and Ethernet (Fast Ethernet) communication between the inverter and the Huawei monitoring system

• Compatibility : Compatible with most Huawei SUN2000 inverters (single-phase and three-phase versions)

• Supported Wi-Fi standards : IEEE 802.11b/g/n (2.4 GHz)

• Ethernet Interface : 1 x 10/100 Mbps RJ45 port

• Power supply : Powered directly from the inverter via USB port

• Installation : Plug & Play – quick and easy, no complex configurations required

• Operating temperature : -30°C to +65°C

• Degree of protection : IP65 – dust and weather resistant

📱 Advantages and applications:

• Remote monitoring via FusionSolar app (iOS/Android) or web portal

• Real-time display of production, consumption, inverter status and alarms

• No need for complicated wiring thanks to wireless transmission

• Ideal for residential or commercial installations requiring flexibility in connectivity
