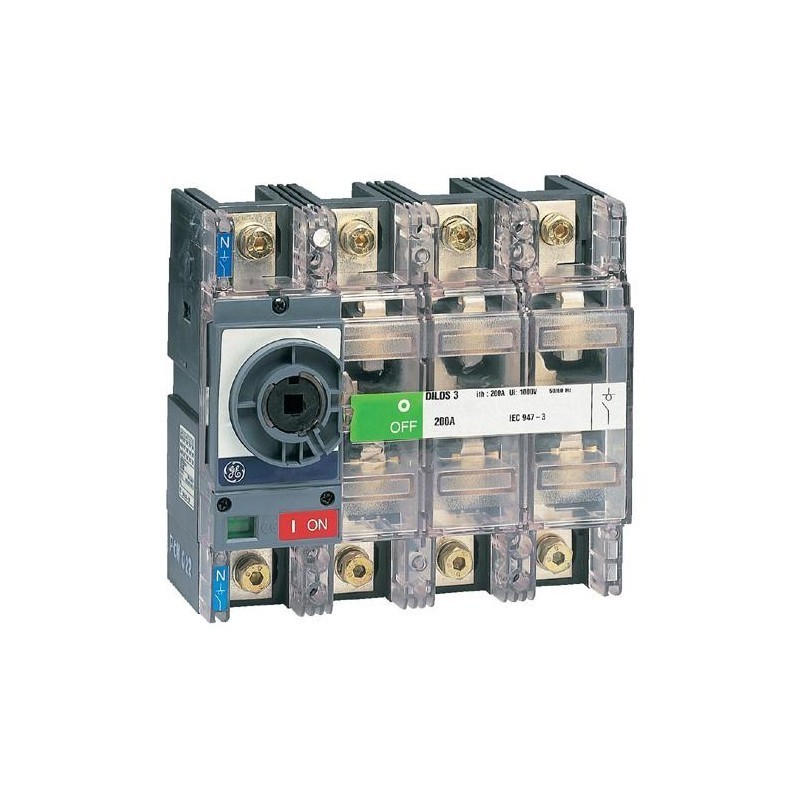

D/061435-201&4p dilos 3 200a switch

The DILOS 3 is a 4-pole switch-disconnector with a conventional thermal current (Ith) of 200 A, designed for low voltage applications. This device offers double interruption on the four contact points, ensuring high resistance in the event of a short circuit.

Main features:

• Rated current (Ith): 200 A
• Number of poles: 4P
• Disconnector type: Disconnector switch
• Contact status indicator: Visible contact position indication
• Command: Panel mount
• Rated operating voltage (Ue): Up to 690 V
• Rated insulation voltage (Ui): 1000 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Mechanical durability: Up to 10,000 opening-closing cycles
• Electrical life: Up to 1,000 opening-closing cycles
• Reference standards: IEC 60947-1, IEC 60947-3
• Approvals: KEMA

This switch is ideal for use as a main switch, local control switch, network switch or busbar tie. Its compactness facilitates installation on various types of boxes, distribution boards or industrial panels.
