Mistral41f built-in blind door 12m

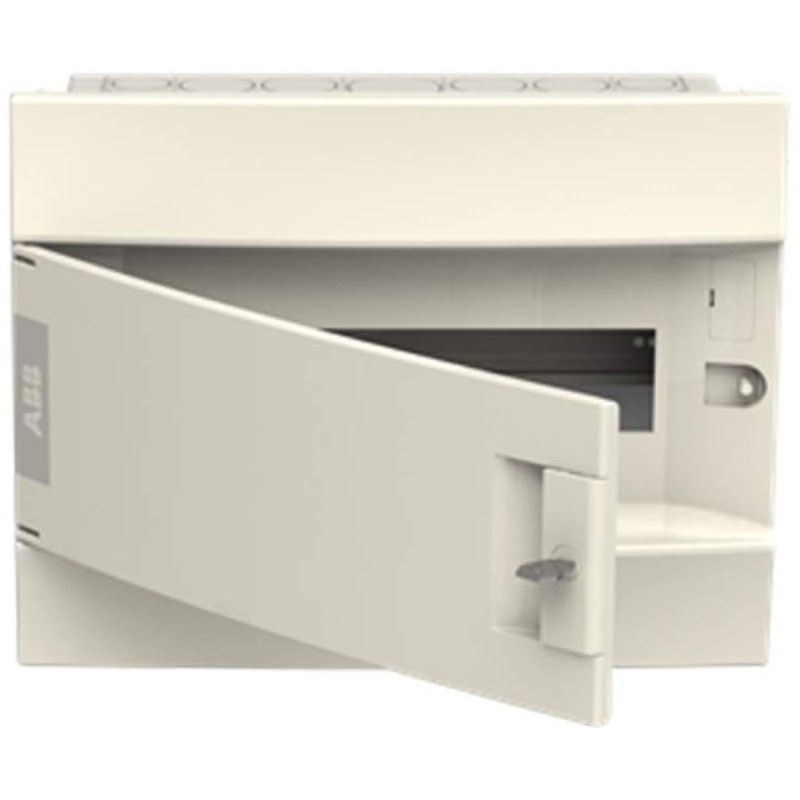

The MISTRAL41F 12M is a flush-mounted switchboard produced by ABB, designed to accommodate up to 12 DIN modules. It is ideal for residential and commercial applications, ensuring a tidy and safe installation of electrical devices.

Main features:

• Mounting method: Wall mounted, suitable for brickwork installation.

• Number of modules: 12 DIN modules, distributed in a single row.

• Cover type: Blind door (not transparent) with pre-cut holes, which provides a discreet appearance and protects internal components.

• Material: Made of durable plastic, compliant with safety standards.

• Color: White RAL 9016, which easily integrates into different environments.

• Degree of protection: IP41, which offers protection against solid objects greater than 1 mm and vertical drops of water.

• Dimensions:

  • Height: 250 mm
  • Width: 320 mm
  • Depth: 108 mm
  • Recess depth: 79 mm
  • Built-in height: 230 mm
  • Recess width: 300 mm

• Accessories included: DIN rail for mounting modular devices.

Advantages:

• Elegant Design: The white finish and solid door provide a clean, professional look that complements a variety of architectural settings.

• Ease of Installation: Pre-cuts and modular construction make it easy to install and organize electrical components.

• Safety: The IP41 protection rating ensures an adequate level of safety for indoor applications.

Applications:

The MISTRAL41F 12M is ideal for installation in residential and commercial environments, where a compact and discreet switchboard is required for the management of electrical circuits.
