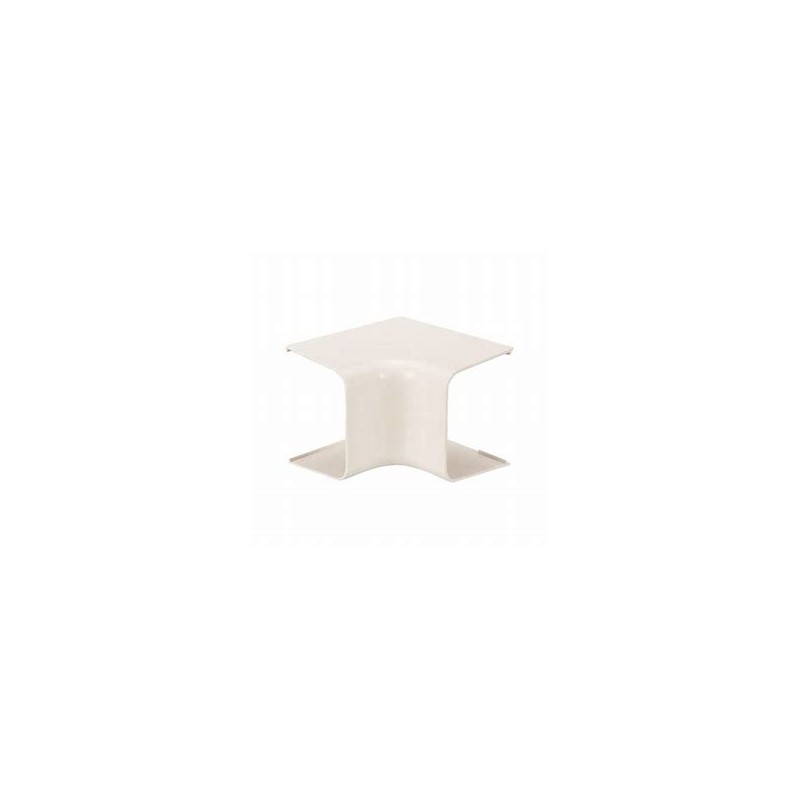

90° internal corner for 60x80 mm channel – LBC model

90° internal corner for 60x80 mm channel – LBC model

For air conditioning ducts

The LBC 90° flat internal corner is designed to create a precise and clean corner connection between two sections of 60x80 mm trunking , used for housing refrigeration lines, electrical cables and condensation drains in air conditioning systems. Made of rigid PVC resistant to impacts and UV rays, it guarantees durability and protection in indoor and outdoor environments.

Technical features:

• Width : 80 mm

• Height : 60 mm

• Angle : 90°

• Material : Rigid PVC (Polyvinyl Chloride)

• Colour : Cream white – RAL 9001

• Weight : 81.5 g

• Flammability : Self-extinguishing – UL94 V0 compliant

• Thermal resistance : -20°C to +60°C

Advantages:

• Aesthetic and functional connection between two sections of duct

• Quick and tool-free installation

• High resistance to impacts and UV rays

• Suitable for split air conditioners , technical ducts, refrigeration lines and wiring

• Compatible with standard 60 x 80 mm ducts

Applications:

• Air conditioning systems (split and multisplit)

• Refrigeration line and drain routes

• Electrical wiring and civil and industrial systems

The LBC internal corner joint is the ideal solution for those who want a tidy, resistant and professional installation of ducts in HVAC systems, with a discreet design that can be integrated into any context.
