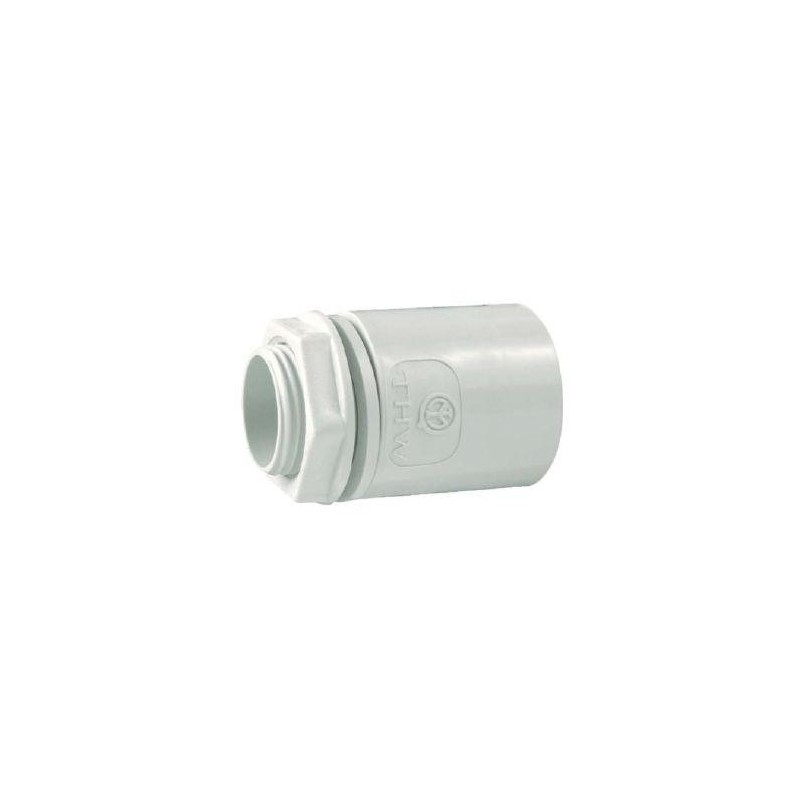

Pipe-box connection d40 m16x1.5 ip67

IP67 tube-box connection

Connects a rigid tube to a box, panel, etc.
It fits effortlessly with light pressure
and disengages with a light pull and rotation.
Complete with nut and flat gasket.

Characteristics
• Standards: CEI EN 50086-1, CEI EN 50086-2-1
• Step: metric M 1.5 ISO
• Material: based on rigid PVC
• Colour: light grey RAL 7035
• Impact resistance: class 3 (>2 Kg from 10 cm at -5°C)
• Minimum temperature: class 2 (-5°C)
• Maximum temperature: class 1 (60°C)
• Flame resistance: self-extinguishing
• Glow wire test 850°C
• Degree of protection: IP67
