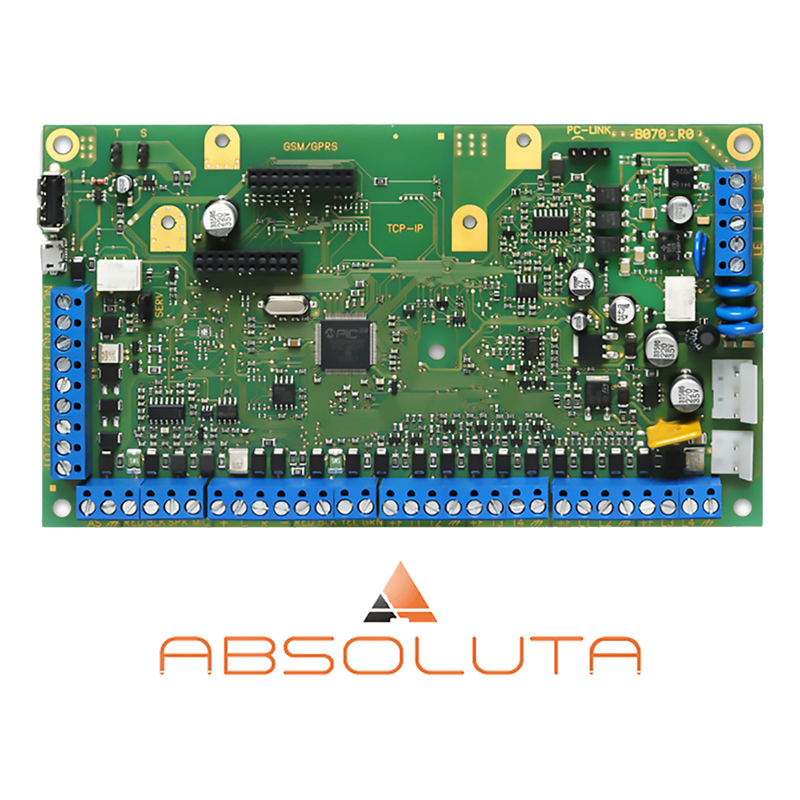

Hybrid wired and radio burglar alarm central board expandable to 16 zones

The Bentel ABS-16 is a hybrid burglar alarm control panel expandable up to 16 zones, designed to meet both residential security needs and advanced industrial installations. Its flexibility allows it to manage both wired and wireless devices, adapting to different types of systems.

Main features:

• Entrance areas:

  • 8 wired zones on board, expandable up to 16 via additional modules.
  • Supports up to 32 wireless zones using receivers such as VRX32-433 and VRX32-868.

• Device Management:

  • Compatible with up to 8 LCD or LED keypads.
  • Supports up to 16 proximity readers (e.g. PROXI, ECLIPSE 2) and 64 digital keys (PROXI-CARD, PROXI-TAG).

• Programmable outputs:

  • Up to 6 outputs on board, expandable via M-IN/OUT modules.

• Communication and notifications:

  • Integrated voice alarm with the ability to record up to 206 customizable voice messages for events or zones, for a total duration of 20 minutes.
  • Telephone voice guidance for remote interaction.
  • Ability to store up to 32 phone numbers for voice or digital notifications.

• Programming and management:

  • Programming via USB port using BOSS software or via USB stick.
  • Mini USB connector for direct connection to PC.
  • Basic home automation functions with programmable outputs for polarity, timer, oscillation and event triggering.
  • Internal memory to record up to 2000 events.
  • Integrated time programmer to manage automatic insertions/disinsertions on a daily or weekly basis for each area.

• Expandability and Integration:

  • Provision for GSM/GPRS/SMS communication modules (e.g. ABS-GSM) and TCP/IP (e.g. ABS-IP).
  • Supports remote assistance and remote programming functions for efficient remote management.

The ABS-16 control panel represents a versatile and reliable solution for those who need a modular security system, capable of integrating wired and wireless technologies, while ensuring advanced management of notifications and home automation functions.
