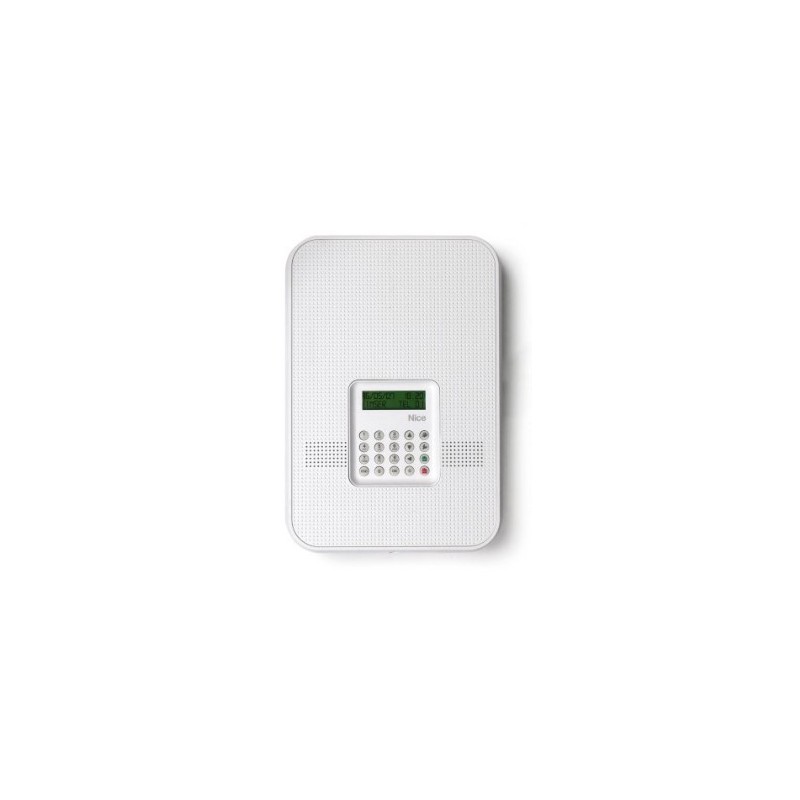

Nice HSCU1 wired control unit

The Nice HSCU1 wired control unit is designed for residential alarm systems, offering advanced features for the security and management of home automation.

Main features:

• Power supply: 230 Vac 50 Hz.
• Backup Battery: Supports 12V 2.2Ah rechargeable lead-acid battery (not included), providing up to 36 hours of battery life in the absence of power.
• Wired alarm inputs: 6 NC lines, freely programmable on 3 arming zones (ABC).
• Wireless Alarm Inputs: Supports up to 99 programmable detectors, with supervised Dual Band radio transmission for secure communications.
• Wired Alarm Outputs: Includes 12V 0.5A siren outputs, 14Vdc self-powered siren and on-board siren.
• Radio alarm outputs: 72-bit encoded digital transmissions for controlling alarm devices.
• Telephone dialer: Models available with integrated PSTN and GSM dialer, allowing communications on landlines and mobile phones.
• Event Memory: Stores the last 200 events for detailed monitoring.
• User Interface: 2x16 character display and 20-key alphanumeric keypad for intuitive operation.
• Sound power: Built-in 106 dB siren, with buzzer for low intensity signals.
• Radio transmission: Digital two-way dual frequency (433 and 868 MHz), with a range of 100 m in open space.
• Dimensions: 211x54x307 mm.
• Weight: 1.2 kg.

This control unit offers a complete solution for home protection, integrating anti-danger functions and automation management, with advanced communication options and flexibility in installation.
