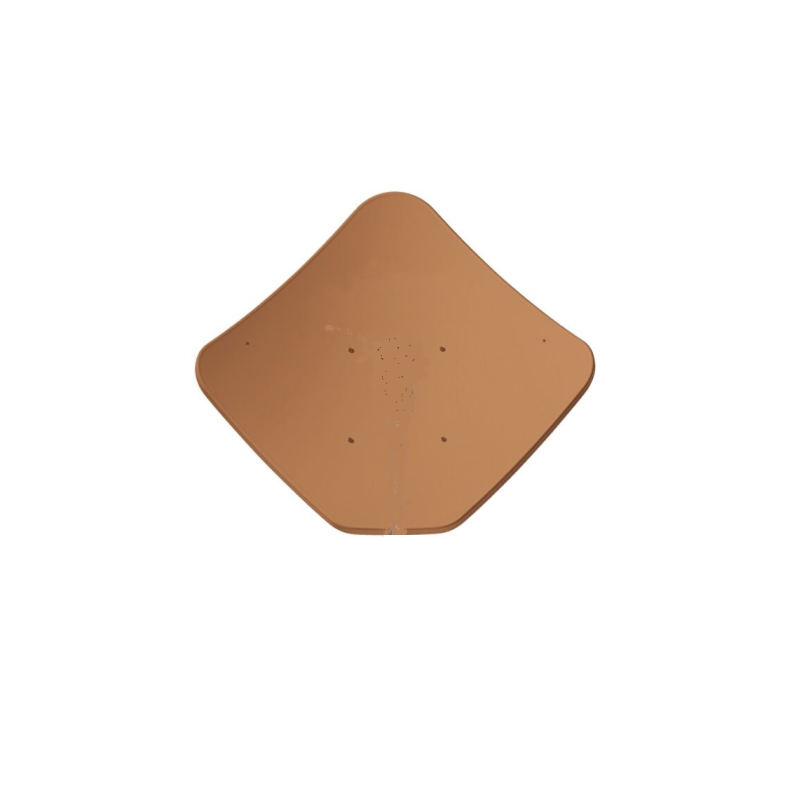

85cm Brick Red Aluminum Satellite Dish - Structure Only

Main features:

• Material: Aluminum, ideal for installations in difficult climatic environments.
• Color: Brick red, for a harmonious aesthetic integration.
• Equivalent diameter: 85 cm.
• Offset angle: 22.1°.
• Efficiency: ≥ 70%.
• Gain at 10.95GHz: 39dB.
• Beamwidth at 3dB: 2.2°.
• LNB connection: Compatible with 23-28mm, 40mm and 60mm diameters.
• Pole attachment: Suitable for poles with diameters from 35 to 80 mm.
• Wind resistance at 150 km/h: 81 kg.
• Noise temperature: 40°K at 30° elevation.
• Cross polarization on axis: >38 dB.
• First lateral lobe:
• Equivalent F/D ratio: 0.7.
• Elevation angle: Up to 60°.

Installation: The dish is designed for installation with a double focus support (code 211001, to be purchased separately), allowing the reception of signals from two different satellites. For installation, it is necessary to order the mounting kit separately (code 211208).

Advantages:

• High efficiency: Ensures optimal reception of satellite signals, ideal for viewing high definition programs.
• Weather resistance: Thanks to the aluminum construction and the treatment of the support, it is suitable for installations in difficult climatic environments.
• Aesthetic design: The brick red color allows for harmonious integration with the surrounding environment.
