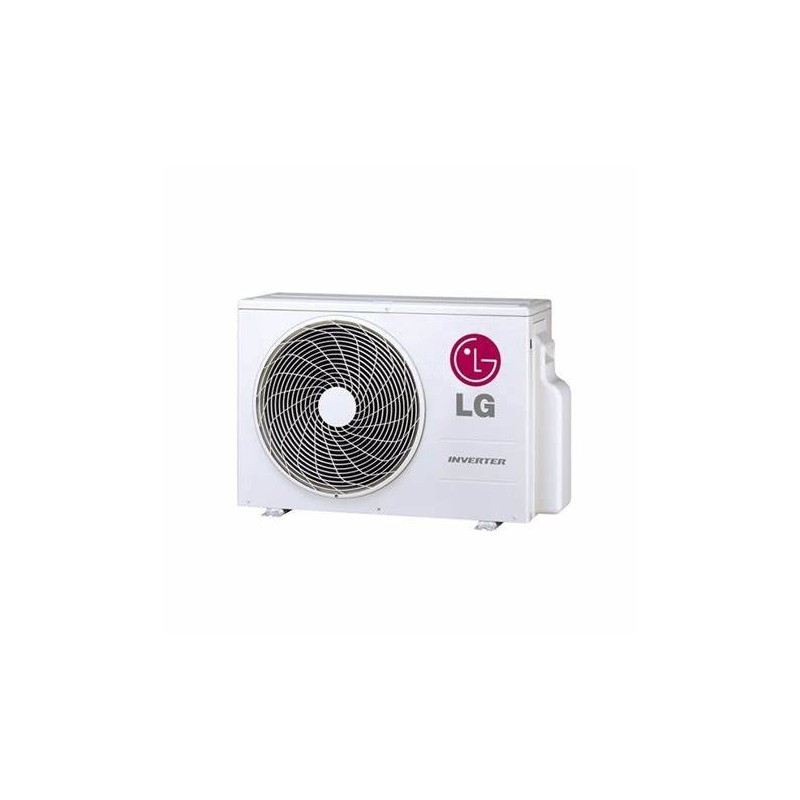

9000 btu mono deluxe outdoor unit

Model: DC09RQ UL2 (part of the LG Deluxe system)

Rated capacity:

• Cooling: 2.5 kW (9,000 BTU)

• Heating: 3.2 kW

Refrigerant gas: R32

Efficiency: SEER ≈ 7.9 (class A++), SCOP ≈ 4.6 (class A+)

Noise level: 49 dB(A) cooling, 51 dB(A) heating; sound power 65 dB(A)

Operating range: cooling –15 °C…+48 °C, heating –15 °C…+24 °C

Weight & Dimensions: 34.1 kg; Dimensions 770 × 545 × 288 mm

Refrigerant pipe: liquid connections 1/4″ (6.35 mm) and gas 3/8″ (9.52 mm); maximum piping 20 m + 10 m difference in height

Compressor: Twin Rotary inverter, with 10 year warranty

Air flow: 35 m³/min in cooling

Power consumption: cooling 572 W, heating 711 W
