Quick air conditioner bracket set p450-h400-l800

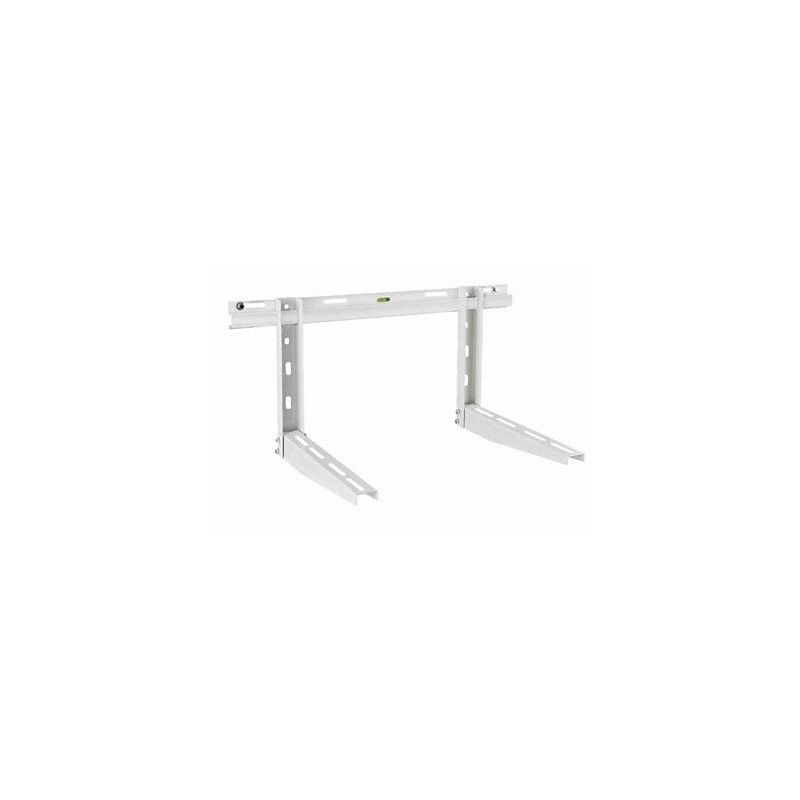

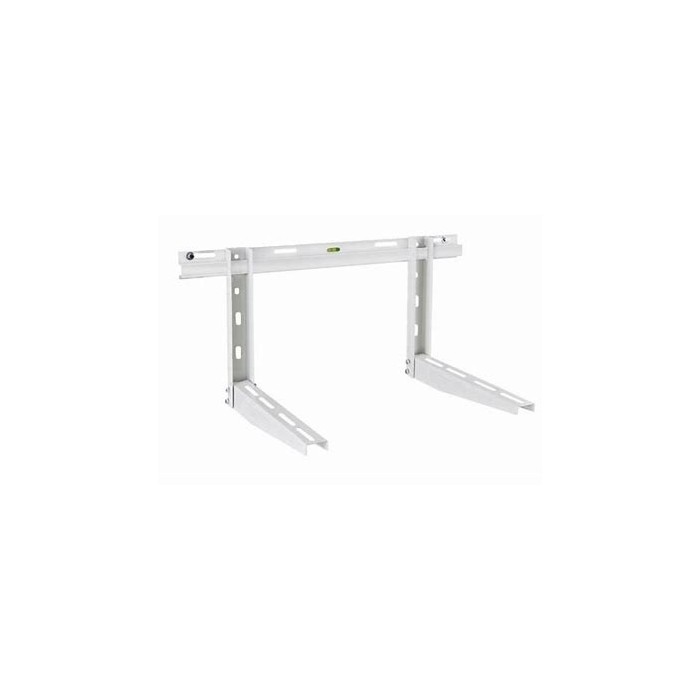

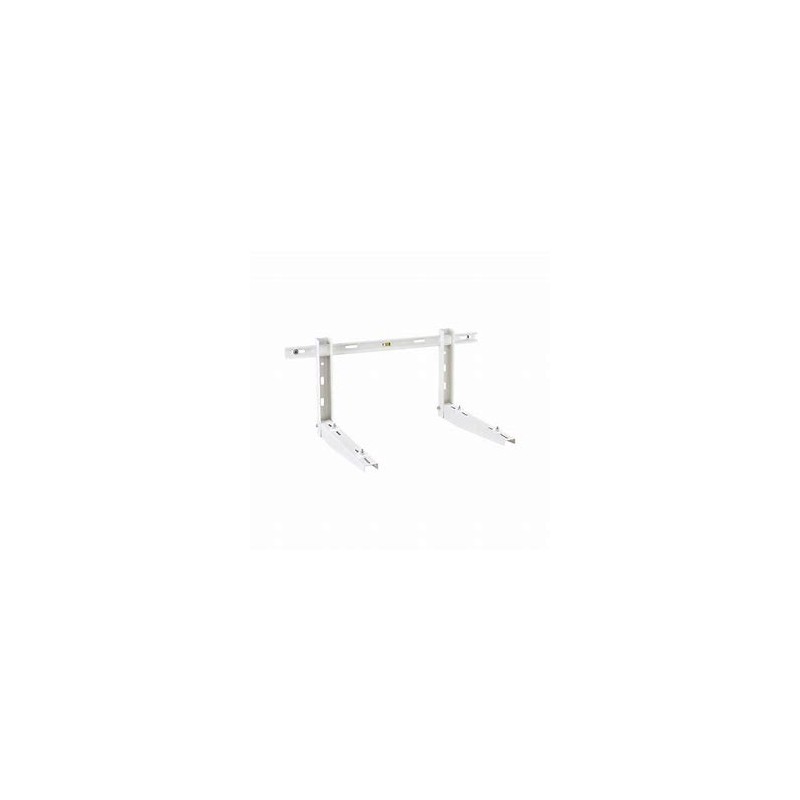

RAPID Air Conditioner Bracket Set – Light Type

Model: BRACKET-AIR-CONDITIONER-RAPID-P450-H400-L800

The RAPID bracket set is a practical, robust and easy-to-install solution for fixing external air conditioning units . Designed to offer stability, ease of assembly and resistance over time , it is equipped with an integrated level , anti-vibration supports and a complete fixing kit , ideal for quick and precise installations.

Main features:

• Usage : Support for external air conditioner units

• Structure : Pair of brackets with adjustable sliding bar

• Integrated spirit level : for precise and fast horizontal positioning

• Equipment :

  • Zinc plated small parts

  • Anti-vibration supports

  • Wall fixing kit

• Colour : Greyish white – RAL 9002

• Surface : Powder coating , corrosion resistant

• Material : Steel

Technical specifications:

• Support arm length : 450 mm

• Horizontal section length : 800 mm

• Vertical section length : 400 mm

• Material thickness : 1.2mm

• Weight (per piece) : 2890 g

• Load capacity (single bracket) : 80 kg

• Load capacity (pair) : 160 kg

• Distance adjustment (bar) : from 150 mm to 370 mm

Directions for use:

The maximum load capacity refers to a pair of brackets with uniformly distributed load and is conditioned by the correct installation and holding of the plugs on the wall .

Ideal for:

• HVAC Installers and Technicians

• Safe and stable fixing of external split units

• Residential and commercial environments

The RAPID P450-H400-L800 set combines functionality, safety and practicality , making the installation of air conditioners simple, fast and professional.
