SolarEdge P300-5RM4MRS Power Optimizer for 60 Cell Modules

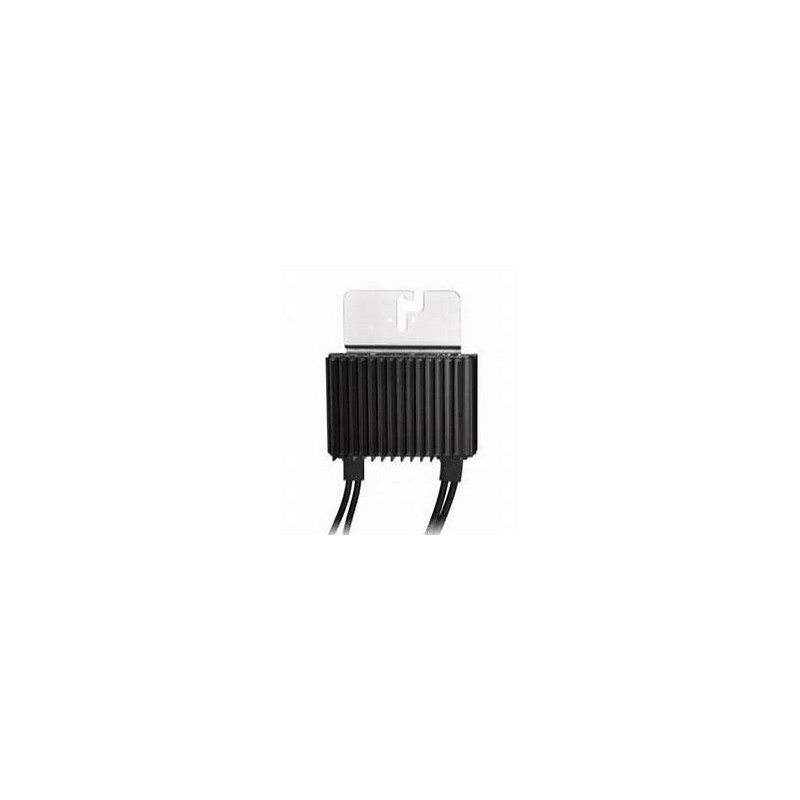

⚡ SolarEdge P300-5RM4MRS Power Optimizer for 60-Cell PV Modules

The SolarEdge P300-5RM4MRS is a power optimizer designed to maximize the energy produced by 60-cell PV modules. By integrating MPPT (Maximum Power Point Tracking) technology at the module level, it can increase energy production by up to 25% , while mitigating losses due to mismatches, partial shading or manufacturing tolerances.

✅ Main features

• Compatibility : Specifically designed for 60-cell PV modules.

• Superior efficiency : Maximum efficiency of 99.5% .

• Advanced Monitoring : Enables individual module level monitoring for effective maintenance.

• Safety : Voltage reduction at module level to ensure the safety of installers and firefighters.

• Quick Installation : Single bolt fixing design for quick and easy installation.

• Design Flexibility : Allows for flexible system configuration for optimal use of available space.

📊 Technical specifications

• Rated DC input power : 300W.

• Absolute maximum input voltage (Voc) : 48 V DC.

• MPPT operating range : 8 – 48 V DC.

• Maximum input current : 12.5A.

• Weighted efficiency : 98.8%.

• Dimensions : 128 x 152 x 28 mm.

• Weight : 630 g.

• Input/Output Connectors : MC4.

• Protection class : IP68, weatherproof.

• Operating temperature : -40°C to +85°C.

🎯 Product Benefits

• Increased energy production : Optimizes the performance of each module, increasing the overall output of the system.

• Loss Reduction : Mitigates losses caused by partial shading, module mismatches, and manufacturing tolerances.

• Simplified maintenance : Module-level monitoring makes it easy to identify and resolve any issues.

• Advanced Safety : Module-level shutdown function increases safety during installation and in case of emergency.

💡 With the SolarEdge P300-5RM4MRS power optimizer, you can significantly improve the efficiency and safety of your PV system, ensuring optimal energy production and simplified management.
