Solaredge gseg-20e gsm modem

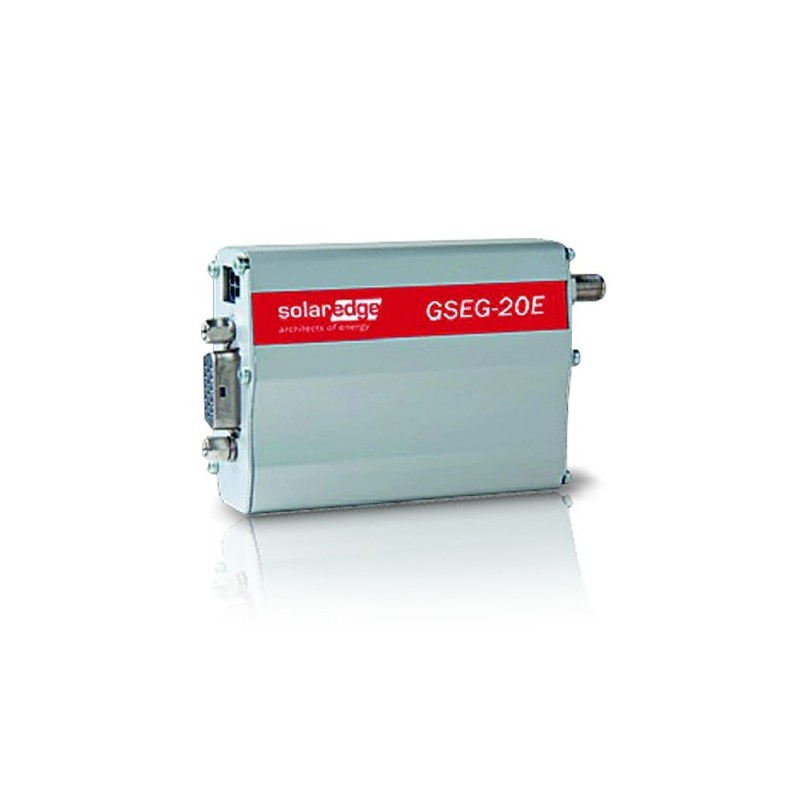

Technical Description of the Solaredge GSEG-20E GSM Modem

Modem Name: Solaredge GSEG-20E

Device Type: GSM/GPRS Modem

Technical Features:

RF Performance:

• Data Rate: 14.4kbps
• Supported Frequencies:
  • 850MHz
  • 900MHz
  • 1800MHz
  • 1900MHz
• Transmission Power:
  • 30 dBm (at 1800/1900 MHz)
  • 33 dBm (at 850/900 MHz)
• Receiver Sensitivity: -106 dBm
• Monthly Data Volume:
  • 0.4 MB for power optimizer
  • 8.5 MB per inverter

Electrical and Mechanical Features:

• Antenna: External, 0 dBi, with SMA/M connector
• Inverter Connector: RS232
• Power supply: 5.5-32 VDC
• Energy Consumption:
  • Idle: 144 mW
  • In Communication: 1080 mW
• Dimensions (HxWxD): 90 x 54.5 x 25.5 mm (3.5 x 2.1 x 1.0 in)
• Weight: 88g (0.2 lb)

Environmental and Regulatory Features:

• Operating Temperatures: -20°C to +60°C (-4°F to +140°F)
• Regulatory Certifications:
  • R&TTE 1999/5/EC
  • ETSI EN 301 489-7
• Environmental Protection: IP31

Additional Features:

• Power supply included: 12V/1A with European plug, 2 meters long cable
• RS232 Null Modem Cable (cross-linked) Included
• SIM Card and Data Package: Not included
• Supported Networks: GSM / GPRS

Applications:

The Solaredge GSEG-20E is designed for Solaredge monitoring systems in photovoltaic plants. This GSM/GPRS modem allows the transmission of monitoring data via GSM network, facilitating the remote control and management of systems even in the absence of a wired internet connection.

The modem is equipped with an external antenna and supports multiple GSM frequency bands to ensure global coverage. The RS232 connection allows integration with inverters and power optimizers, while the flexible power supply and compact size make it suitable for various installation environments.
