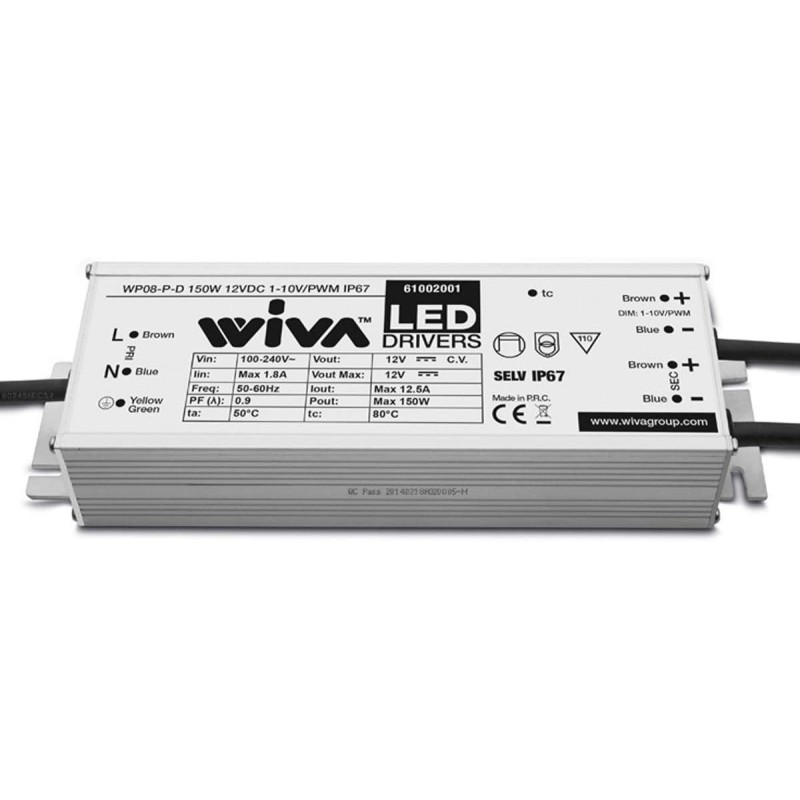

Driver WP08-PD 150W 12V DC 1-10V/PWM IP67 - 12.5A 150W 100-240V AC 50/60Hz

Driver WP08-PD 150W 12V DC 1-10V/PWM IP67 - 12.5A 150W 100-240V AC 50/60Hz

The WP08-PD driver is a high-quality power supply designed for LED lighting systems and other applications requiring a constant output voltage of 12V DC and a power of 150W. With a current capacity of 12.5A, this device ensures reliable and stable performance in a wide range of operating conditions.

Main features:

• Output voltage: 12V DC constant
• Maximum power: 150W
• Output current: 12.5A
• Input: 100-240V AC, 50/60Hz, with a maximum consumption of 1.8A
• Dimmable Control: Support 1-10V and PWM control for precise brightness adjustment
• Degree of protection: IP67, ideal for outdoor environments or in humid and dusty conditions
• Energy efficiency: Power factor 0.90, for efficient energy use
• Compact size: 233x74x43mm, for easy and versatile installation
• Operating temperature range: -40°C to +50°C, also suitable for extreme environments
• Weight: 1.2kg, sturdy but easy to handle

Advantages:

• Water and dust resistant: IP67 certified, it can be installed outdoors without the need for additional protection.
• Energy Efficiency: Thanks to the power factor of 0.90, it reduces energy losses, improving operating efficiency.
• Precise Brightness Control: Compatible with 1-10V and PWM dimming systems, allows for accurate adjustment of light intensity.
• Reliability and durability: Designed to withstand harsh environmental conditions, with an extended temperature range of -40°C to +50°C.

This driver is the ideal choice for those looking for a powerful, reliable power supply suitable for professional installations in complex environments.
